PCAS Pressure Compensated Drip System

The Dramm PCAS Drip System offers accuracy and ease of use in drip irrigation. Utilizing chemical tolerant silicone diapragms and easy to harvest, slim metal weights, the PCAS system improves on existing pressure compensated systems. Available as a single emitter to plant system for hanging baskets and as 2 and 4 way assemblies for potted crops.
NEW EMITTER DESIGN Our new PCAS Emitter is larger than our previous model and other emitters on the market. This new larger size allow us to have a wider labyrinth which reduces clogging. As the path is wider than before, less debris is trapped in the labyrinth.



The Dramm PCAS Drip System is available in four different flow rates, 0.5 gph, 1 gph, 2 gph and 4 gph and with either weight or stake outlets. PCAS emitters operate between 15 and 50 psi allowing for higher head pressures while still maintaining accurate flow.

Drawing on years or irrigation experience, Dramm can design your entire irrigation system.

Let Dramm design your system.

Contact us via e-mail or by phone at the numbers listed to the left with questions or for more information.

2 lph Drip Assembly - 18 in.


ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
PCAS2L-18 18 in 2 lph Drip Assembly - 18 in. BROCHURE --

2 lph Drip Assembly - 24 in.



ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
PCAS2L-24 24 in 2 lph Drip Assembly - 24 in. BROCHURE --
PCAS2L-36 36 in 2 lph Drip Assembly - 36 in. BROCHURE --
PCAS2L-48 48 in 2 lph Drip Assembly - 48 in. BROCHURE --

4 in. dia Pressure Compensated Dribble Ring


Pressure Compensated Rings offer even watering of trees and nursery stock. With 8 lph (2 gph) emitters, each plant gets the same amount of water supplied by Dramm's Dribble Rings.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
PCR4-12 12 in. tube 4 in. dia Pressure Compensated Dribble Ring - --

4 in. dia Pressure Compensated Dribble Ring



ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
PCR4-24 24 in. tube 4 in. dia Pressure Compensated Dribble Ring - --
PCR4-36 36 in. tube 4 in. dia Pressure Compensated Dribble Ring - --
PCR4-48 48 in. tube 4 in. dia Pressure Compensated Dribble Ring - --
PCR6-12 12 in. tube 6 in. dia Pressure Compensated Dribble Ring - --
PCR6-24 24 in. tube 6 in. dia Pressure Compensated Dribble Ring - --
PCR6-36 36 in. tube 6 in. dia Pressure Compensated Dribble Ring - --
PCR6-48 48 in. tube 6 in. dia Pressure Compensated Dribble Ring - --
PCR85-12 12 in. tube 8.5 in. dia Pressure Compensated Dribble Ring - --
PCR85-24 24 in. tube 8.5 in. dia Pressure Compensated Dribble Ring - --
PCR85-36 36 in. tube 8.5 in. dia Pressure Compensated Dribble Ring - --
PCR85-48 48 in. tube 8.5 in. dia Pressure Compensated Dribble Ring - --
PCR10-12 12 in. tube 10 in. dia Pressure Compensated Dribble Ring - --
PCR10-24 24 in. tube 10 in. dia Pressure Compensated Dribble Ring - --
PCR10-36 36 in. tube 10 in. dia Pressure Compensated Dribble Ring - --
PCR10-48 48 in. tube 10 in. dia Pressure Compensated Dribble Ring - --
PCR13-12 12 in. tube 13 in. dia Pressure Compensated Dribble Ring - --
PCR13-24 24 in. tube 13 in. dia Pressure Compensated Dribble Ring - --
PCR13-36 36 in. tube 13 in. dia Pressure Compensated Dribble Ring - --
PCR13-48 48 in. tube 13 in. dia Pressure Compensated Dribble Ring - --

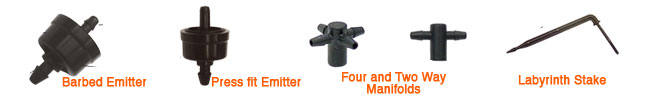

MB 2 lph (1/2 gph) Pressure Compensated Emitter Barbed



The Dramm Pressure Compensated Anti Siphoning Drip Emitters are state of the art in drip irrigation technology. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our new LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
PCAS2L 2 lph MB 2 lph (1/2 gph) Pressure Compensated Emitter Barbed BROCHURE --
PCAS4L 4 lph MB 4 lph (1 gph) Pressure Compensated Emitter PressFit BROCHURE --
PCAS4L-B 4 lph MB 4 lph (1 gph) Pressure Compensated Emitter Barbed BROCHURE --
PCAS8L 8 lph MB 8 lph (2 gph) Pressure Compensated Emiiter PressFit BROCHURE --
MAN2 - 2 Way Manifold BROCHURE --
MAN4 - 4 Way Manifold BROCHURE --
PCASW 11 Gram Slim Weight - Zinc Aluminum Alloy BROCHURE --
187-18 18 in. 18 in. - 0.187 Tubing BROCHURE --
187-24 24 in. 24 in. - 0.187 Tubing BROCHURE --
187-36 35 in. 36 in. - 0.187 Tubing BROCHURE --
187-42 42 in. 42 - 0.187 Tubing BROCHURE --
187-48 48 in. 48 - 0.187 Tubing BROCHURE --
BARB3 3mm 3mm Barbed Fitting - --
BLANK3 3mm 3mm Plug for mistakes - --
PUNCH1650 3mm 3mm Punch for 16mm or 1/2 Tubing - --
LST4-45 4 in. 45 deg. Angle Labyrinth Stake 4 in. - --
