ProLine Irrigation Controller

The ProLine Irrigation Controller offers basic irrigation control and advanced features in a easy-to-program and affordable unit.

With up to 4 programs that can run independently or simultaneously, with up to 8 start times per day and day selection capability, the ProLine provides flexibility in your watering.

This modular controller starts with 4 outputs, but is expandable up to 24. Each valve can operate from 1 minute to 9 hours, 55 minutes. Seasonal adjustment allows for these values to be changed based on time of year without altering the each valve's programming.

The ProLine offers manual operation of an individual valve or an entire program.

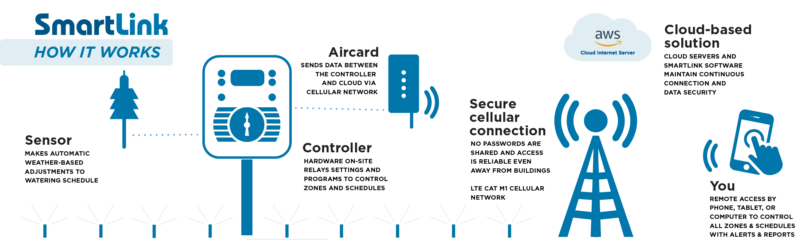

Connect to your controller to monitor activity or adjust the programming from anywhere with the SmartLink upgrade (requires optional cellular connection package and air card). The SmartLink App on your phone allows easy access.

ProLine Irrigation Controller - 4 Station (expandable)

The ProLine Irrigation Controller offers advanced control features such as multiple program operation, master valve, multiple start times per day, manual operation, and an option to add cellular connectivity to monitor and modify irrigation operation from your phone.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
PL1600-04	4 output	ProLine Irrigation Controller - 4 Station (expandable)	BROCHURE	MANUAL	2 lbs

ProLine Quick Start Guide

Quick Start Guide for the ProLine Controller. Step-by-step instructions to program the basics.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ProLineQS	Document	ProLine Quick Start Guide	BROCHURE	MANUAL	NA

ProLine Installation Guide

Easy instructions showing how to install your ProLine Controller.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ProLineIG	Document	ProLine Installation Guide	BROCHURE	MANUAL	NA
