DrammOutdoors - PipeLoc


The DrammOutdoors irrigation line combines state-of-the-art irrigation nozzles with a unique, plastic plumbing system for even watering with easy installation.

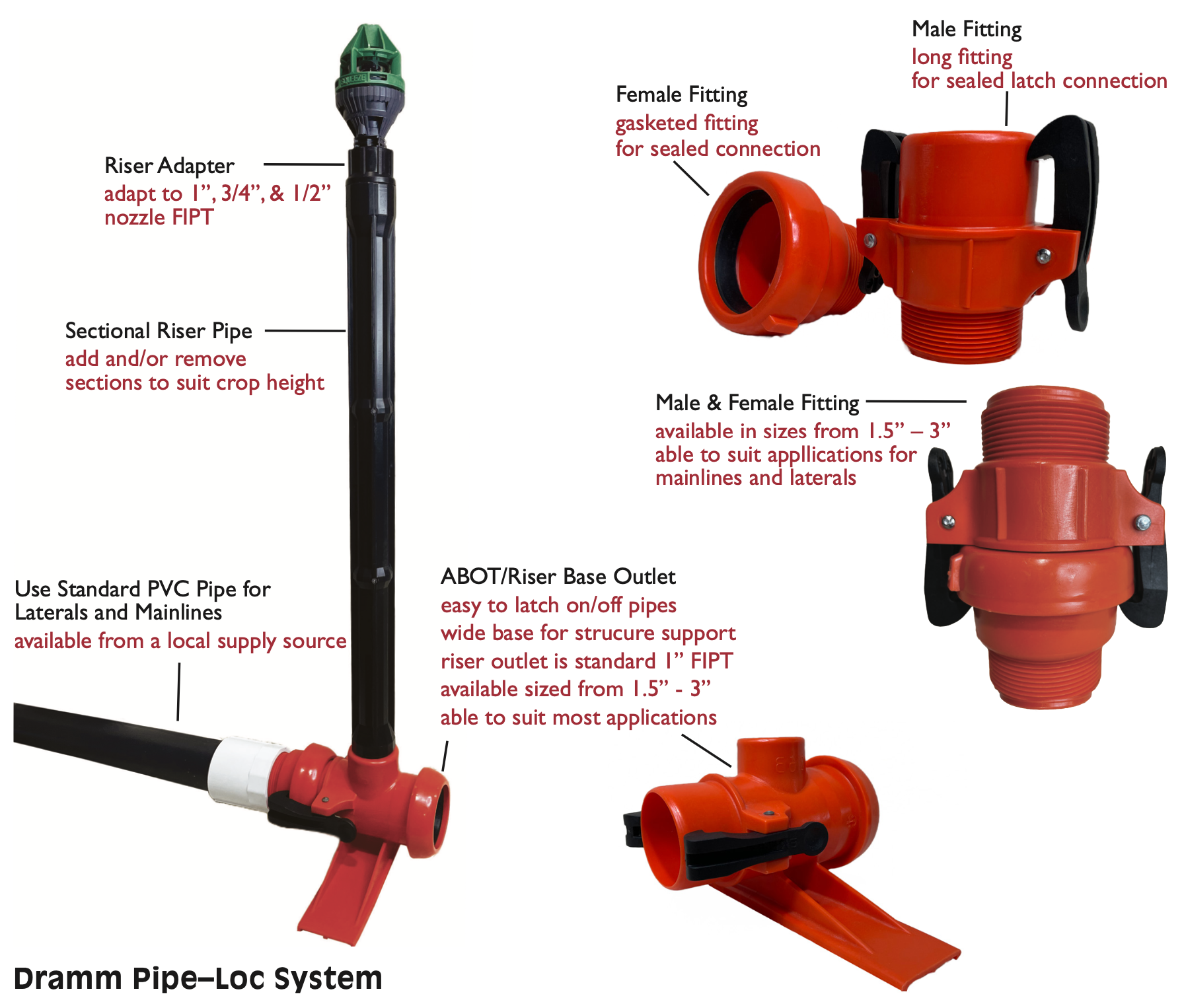

PipeLoc plastic fittings and risers combine to make outdoor irrigation system installation easy. With cam-lock connections and threaded ends, PipeLoc works with standard PVC pipe to create an inexpensive, easy-to-use plumbing system for your outdoor irrigation. PipeLoc is available in 1.5" to 3" sizes and includes straight connectors, elbows, tees, and riser bases.

Combine this system with the DrammOutdoors Nozzles for unmatched coverage and ease of use.

Let Dramm Design Your System.

The Dramm Team can plan your complete outdoor irrigation system and ship it complete.




Abot/Riser Base 1.5


The Abot Riser base connects laterals to risers.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
A-050-001-607 1.5 in Abot/Riser Base 1.5 - --

Male End Fitting 1.5


Male PipeLoc fitting.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
A-050-001-616 1.5 in Male End Fitting 1.5 - --

Female End Fitting 1.5


Female PipeLoc fitting.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
A-050-001-517 1.5 in Female End Fitting 1.5 - --

Riser Pipe (Black) ED x20inch


20 inch riser section for PipeLoc. Threads into Riser Base and connects to other riser pipes to reach desired nozzle height.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
A-032-032-450 - Riser Pipe (Black) ED x20inch - --

Abot/Riser Base 2



ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
A-063-001-607 2 in Abot/Riser Base 2 - --
A-075-001-607 2.5 in Abot/Riser Base 2.5 - --
A-090-001-607 3 in Abot/Riser Base 3 - --
A-050-050-621 1.5 in Tee fitting 1.5 x 1.5 x 1.5 - --
A-063-063-623 2 in Tee fitting 2 x 2 x 2 - --
A-075-050-624 2.5 in/1.5 in Tee fitting 2.5 x 1.5 x 2.5 - --
A-075-063-625 2.5 in/2 in Tee fitting 2.5 x 2 x 2.5 - --
A-075-075-626 2.5 in Tee fitting 2.5 x 2.5 x 2.5 - --
A-090-050-627 3 in/1.5in Tee fitting 3 x 1.5 x 3 - --
A-090-063-628 3in/2in Tee fitting 3 x 2 x 3 - --
A-090-075-629 3in/2.5in Tee fitting 3 x 2.5 x 3 - --
A-090-090-630 3 in Tee fitting 3 x 3 x 3 - --
A-050-050-642 1.5 in Cross fitting 1.5 x 1.5 - --
A-063-063-644 2 in Cross fitting 2 x 2 - --
A-075-050-645 2.5 in/1.5 in Cross fitting 2.5 x 1.5 - --
A-075-063-646 2.5 in/2 in Cross fitting 2.5 x 2 - --
A-075-075-647 2.5 in Cross fitting 2.5 x 2.5 - --
A-090-050-648 3 in/1.5in Cross fitting 3 x 1.5 - --
A-090-063-649 3 in/2 in Cross fitting 3 x 2 - --
A-090-075-650 3 in/2.5 in Cross fitting 3 x 2.5 - --
A-090-090-651 3in Cross fitting 3 x 3 - --
A-063-050-665 - Reduction adapter 2 x 1.5 - --
A-075-050-666 - Reduction adapter 2.5 x 1.5 - --
A-075-063-667 - Reduction adapter 2.5 x 2 - --
A-090-050-668 - Reduction adapter 3 x 1.5 - --
A-090-063-669 - Reduction adapter 3 x 2 - --
A-090-075-670 - Reduction adapter 3 x 2.5 - --
A-050-000-608 - Elbow fitting 1.5 x 1.5 - --
A-063-000-608 - Elbow fitting 2 x 2 - --
A-075-000-608 - Elbow fitting 2.5 x 2.5 - --
A-090-000-608 - Elbow fitting 3 x 3 - --
A-050-000-509 1.5 in Gasket 1.5 - --
A-063-000-509 2 in Gasket 2 - --
A-075-000-509 2.5 in Gasket 2.5 - --
A-090-000-509 3 in Gasket 3 - --
A-063-001-616 2 in Male End Fitting 2 - --
A-075-001-616 2.5 in Male End Fitting 2.5 - --
A-090-001-616 3 in Male End Fitting 3 - --
A-063-001-517 2 in Female End Fitting 2 - --
A-075-001-517 2.5 in Female End Fitting 2.5 - --
A-090-001-517 3 in Female End Fitting 3 - --
A-050-000-605 1.5 in Male End Cap 1.5 - --
A-063-000-605 2 in Male End Cap 2 - --
A-075-000-605 2.5 in Male End Cap 2.5 - --
A-030-000-605 3 in Male End Cap 3 - --
A-050-000-506 1.5 in Female End Cap 1.5 - --
A-063-000-506 2 in Female End Cap 2 - --
A-075-000-506 2.5 in Female End Cap 2.5 - --
A-030-000-506 3 in Female End Cap 3 - --
A-032-025-001 - Riser Nozzle Adapter 1 x 3/4 - --
A-032-032-014 - Sprinkler Valve 3/4 fipt x fipt - --
A-050-000-612 1.5 in In-Line Ball Valve w/latches 1.5 - --
A-063-000-612 2 in In-Line Ball Valve w/latches 2 - --
A-075-000-612 2.5 in In-Line Ball Valve w/latches 2.5 - --
A-090-000-612 3 in In-Line Ball Valve w/latches 3 - --
