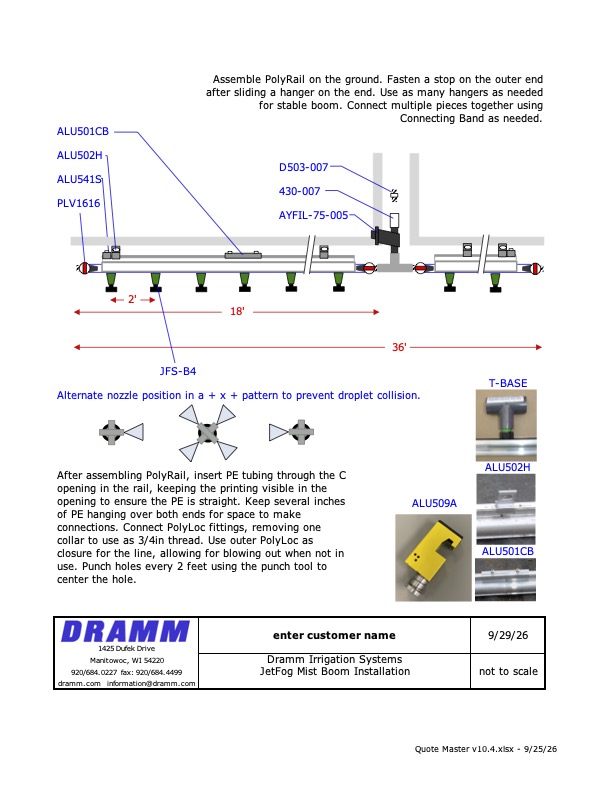

JetFog Boom System

Add humidity without wetness.



The Dramm JetFog nozzles create a fine, 80µ droplet at 50 psi. These small droplets are perfect for adding humidity without overwetting the crop.

Dramm has developed a kit to add a fog arm to existing irrigation booms to encourage germination and rooting without adding too much water to the media..

This kit includes the JetFog nozzles, PolyRail for support, and the fittings to connect the system. The customer is responsible for connecting to either a 3/4" pipe or hose threaded inlet for the boom.

An easy addition to existing booms, the JetFog Boom is a great way to improve propagation performance.

JetFog Barbed Nozzle

The JefFog nozzle offers a very fine spray (80 micron) between 50-70 psi. Available in a barbed or threaded inlet with single or multiple outlets. Flow per tip is 5.8 lph (1.5 gph).

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JFSB	-	JetFog Barbed Nozzle	BROCHURE	MANUAL	-

JetFog Threaded Nozzle

The JefFog nozzle offers a very fine spray (80 micron) between 50-70 psi. Available in a barbed or threaded inlet with single or multiple outlets. Flow per tip is 5.8 lph (1.5 gph).

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JFST	-	JetFog Threaded Nozzle	BROCHURE	MANUAL	-

JetFog 2 way Barbed

Two outlet nozzle with barbed inlet. Flow rate is 11.6 lph (3 gph).

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JFB2	-	JetFog 2 way Barbed	BROCHURE	MANUAL	-

JetFog 4 way Barbed

Four outlet nozzle with barbed inlet. Flow rate is 23.2 lph (6 gph).

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JFSB4	-	JetFog 4 way Barbed	BROCHURE	MANUAL	-

JetFog 5 way Barbed

Five outlet nozzle with barbed inlet. Flow rate is 29 lph (7.5 gph).

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JFSB5	-	JetFog 5 way Barbed	BROCHURE	MANUAL	-

JetFog 4 way Threaded

Four outlet nozzle with threaded inlet. Flow rate is 23.2 lph (6 gph).

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JFST4	-	JetFog 4 way Threaded	BROCHURE	MANUAL	-

JetFog 5 way Threaded

Five outlet nozzle with threaded inlet. Flow rate is 29 lph (7.5 gph).

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JFST5	-	JetFog 5 way Threaded	BROCHURE	MANUAL	-

Replacement Nozzle for JetFog

Replacement nozzle tip for JetFog nozzle. Press-fit connection.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JF-525	-	Replacement Nozzle for JetFog	BROCHURE	MANUAL	-

Blank Nozzle for JetFog

Blank nozzle tip to prevent spray from any JetFog outlet. Press-fit connection.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JF-524	-	Blank Nozzle for JetFog	BROCHURE	MANUAL	-

2 way cross for JetFog

Two way cross for JetFog Nozzle. Press fit connection.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JF-2CROSS	-	2 way cross for JetFog	BROCHURE	MANUAL	-

4 way cross for JetFog

Four way cross for JetFog Nozzle. Press fit connection.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JF-4CROSS	-	4 way cross for JetFog	BROCHURE	MANUAL	-

Replacement ADV Diaphragm for JetFog

Replacement diaphragm for JetFog Anti Drip Device. Silicone. Use JF-WRENCH-C to access diaphragm and reseat new diaphragm.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JF-560	-	Replacement ADV Diaphragm for JetFog	BROCHURE	MANUAL	-

JetFOG Wrench Tool w/ JetFOG Seat Tool

Combo set for disassembling and reassembling JetFOG nozzles easily.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
JF-WRENCH-C	-	JetFOG Wrench Tool w/ JetFOG Seat Tool	BROCHURE	MANUAL	-

PolyRail 16mm Aluminum Extrusion

PolyRail aluminum extrusion tightly sleeves PE tubing keeping it rigid, without sags. PolyRail keeps nozzles straight and even, ensuring the best coverage for your irrigation system. Installs easily without glue.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU16	12' section	PolyRail 16mm Aluminum Extrusion	-	-	-

PolyRail 25mm Aluminum Extrusion

25mm (3/4) diameter. For higher flow and more support. 25mm PolyRail may be used to hang baskets

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU25	12' section	PolyRail 25mm Aluminum Extrusion	-	-	-

PolyRail Connecting Band

Connecting band with set screws. 4 length. Connects two rail pieces together.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU501CB	4 inch	PolyRail Connecting Band	-	-	-

PolyRail Connecting Band

Connecting band with set screws. 14 length. Connects two rail pieces together.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU50135	14 inch	PolyRail Connecting Band	-	-	-

PolyRail 90 deg Hanger 16mm

Hanger to position PE outlet at a 90_ angle

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU500PH	16mm	PolyRail 90 deg Hanger 16mm	-	-	-

PolyRail 90 deg Hanger 25mm

Hanger to position PE outlet at a 90_ angle

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU500-90	25mm	PolyRail 90 deg Hanger 25mm	-	-	-

PolyRail Top Hanger

Hanger rides on Rail to position PE outlet towards the bottom of the Rail.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU502H	Top	PolyRail Top Hanger	-	-	-

PolyRail Stop

Stop used at both ends of each irrigation run. Includes set screw.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU541S	-	PolyRail Stop	-	-	-

PolyRail Punch 25mm

Punch for centering 3mm hole in PE.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU503A	25mm	PolyRail Punch 25mm	-	-	-

PolyRail Punch 16mm

Punch for centering 3mm hole in PE.

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALU509A	16mm	PolyRail Punch 16mm	-	-	-

PolyRail Bench Riser Base

Base for PolyRail Bench Riser Support

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALUSB	-	PolyRail Bench Riser Base	-	-	-

PolyRail Bench Riser Cap

Cap for top of PolyRail Bench Riser Support

ITEM	SIZE	NAME	BROCHURE	MANUAL	SHIP WT.
ALUSC	-	PolyRail Bench Riser Cap	-	-	-
