PulsFOG® Thermal Foggers

The PulsFOG® rapidly applies chemicals as a fog. The ultra-fine cloud of droplets penetrates deep into the plant canopy covering all surfaces, ensuring excellent control of greenhouse pests and diseases.


The PulsFOG advantage is speed. With models that can treat 150,000 square feet in as little as 45 minutes, the PulsFOG makes quick work of chemical application. The visible fog allows the applicator to stay out of the chemical spray, increasing the safety of the application. The PulsFOG saves time and money by reducing the labor needed to spray while reducing the amount of chemical needed to control your pests. By creating billions of tiny spray droplets, the PulsFOG treats large areas with less chemical solution.

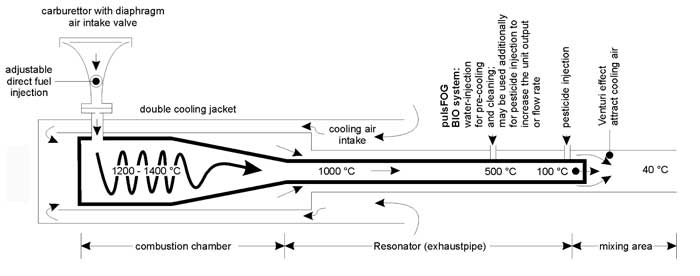

For the application of heat-sensitive products and biological formulations, Dramm offers the BIO PulsFOG units.



These fogger utilize a second solution tank and a second set of injection nozzles. The second tank is filled with water which is used to cool the exhaust, allowing for heat-sensitive products to be used.

Dramm works closely with the various chemical manufacturers to ensure these products are tested. To learn which chemicals have been approved for this equipment, please contact us.

Perfect for both large and small greenhouses, the PulsFOG can be used from the doorway to treat quonset greenhouses in minutes or gutter connected greenhouses from the aisle.

To create more even droplets and reduce evaporation, the PulsFOGs require the use of an additional carrier to be mixed into the chemical solution. These products are listed below.



For more information, contact us via e-mail or by phone at the numbers listed to the left.

Technical Questions? Check out our forum.

K-10 Portable PulsFOG®


For greenhouses. Fogs 10 liters in 45 minutes. Propels fog up to 65 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-10 25 HP/10 Liter K-10 Portable PulsFOG® BROCHURE MANUAL25 lbs.

K-10/O Portable Livestock PulsFOG®


For livestock or outdoor. For use with oil-based formulations. Fogs 10 liters in 45 minutes.

Propels fog up to 65 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-10/O 25 HP/10 Liter K-10/O Portable Livestock PulsFOG® BROCHURE MANUAL18 lbs.

K-22 Standard PulsFOG®


For greenhouses. Fogs 10 liters in 30 minutes. Propels fog up to 120 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-22 50 HP/10 Liter K-22 Standard PulsFOG® BROCHURE MANUAL18 lbs.

K-22/O Portable Livestock PulsFOG®


For livestock or outdoor use. For use with oil-based formulations. Fogs 10 liters in 30 minutes.

Propels fog up to 120 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-22/O 50 HP/10 Liter K-22/O Portable Livestock PulsFOG® BROCHURE MANUAL33 lbs.

K-22 BIO Portable PulsFOG®


For greenhouses or livestock. Safe for heat sensitive products. Fogs 5 liters in 15 minutes. Propels fog up to 120 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-22 BIO 50 HP/2-5 Liter K-22 BIO Portable PulsFOG® BROCHURE MANUAL34 lbs.

K-30 Standard PulsFOG®


For greenhouses. Fogs 10 liters in 15 minutes.

Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30 100 HP/10 Liter K-30 Standard PulsFOG® BROCHURE MANUAL25 lbs.

K-30/O Portable Livestock PulsFOG®


For livestock or outdoor use. For use with oil-based formulations. Fogs 10 liters in 15 minutes. Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/O 100 HP/10 liter K-30/O Portable Livestock PulsFOG® BROCHURE MANUAL42 lbs.

K-30 Large BIO PulsFOG®


For greenhouses or livestock. Safe for heat sensitive products. Fogs 55 lites in 80 minutes. Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/20 BIO 100 HP/2- 55 liter tanks K-30 Large BIO PulsFOG® BROCHURE MANUAL67 lbs.

K-30 Large Livestock PulsFOG®


For livestock or outdoor use. For use with oil-based formulations. Fogs 55 liters in 80 minutes. Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/20/O 100 HP/55 liter K-30 Large Livestock PulsFOG® BROCHURE MANUAL58 lbs.

K-4 Large BIO PulsFOG®


For greenhouses or livestock. Safe for heat sensitive products. Fogs 50 liters in 50 minutes. Propels fog up to 300 feet. 100 Liter tanks available.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-4 PulsFOG 125 HP/2- 55 liter tanks K-4 Large BIO PulsFOG® BROCHURE MANUAL-

K-30/20 Cart


For K-30/20 PulsFOG machines. Can handle two 55 liter tanks. Allows for height adjustment and includes handle to turn PulsFOG.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/20C - K-30/20 Cart BROCHURE MANUAL85 lbs.

PulsFOG Accessories


ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
Accessories - PulsFOG Accessories - --

5 Liter Chemical Tank



For PulsFOG K-10SP

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-05LCT 5 liter 5 Liter Chemical Tank - MANUAL2 lbs.
K-10LCT 10 liter 10 Liter Chemical Tank - MANUAL3 lbs.
K-55LNR 55 liter 55 Liter Chemical Tank - MANUAL11 lbs.
K-CF - Chemical Funnel - MANUAL1 lbs.
K-GP - Gas Pitcher - MANUAL1 lbs.
K-EP - Ear Protectors - MANUAL1 lbs.
K-CHP - Cleaning Hand Pump - MANUAL1 lbs.
K-CST - Cleaning Solution Tank - MANUAL2 lbs.
149 - PulsFOG Dosage Nozzles - MANUAL1 lbs.

Carrier Solution


Use of the PulsFOG requires a carrier solution to help reduce surface tension and create evenly sized droplets. There are three solutions available. For most horticultural applications, NutriFOG is the preferred carrier. VK-I and VK-II are also available. NutriFog and VK-II are for all chemical formulations and mixed with water. VK-I is for EC chemicals only and is NOT to be mixed with water.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
Carrier Various Carrier Solution - --

NutriFog - For all chemicals



NutriFOG is a 10-3-3 foliar fertilizer. It can be used with all chemical formulations. It is safe on all ornamentals. 0.25 liters mixed with 1.75 liters of water will treat 10,000 square feet. Do not use more than 5 times in one month on the same crop. Available in 20 liter (5 gallon) containers.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
NF-20 20 liters NutriFog - For all chemicals BROCHURE MANUAL58 lbs.
VK1-5G 5 gallons Carrier Solution - For EC Chemicals BROCHURE MANUAL56 lbs.
VK2-5G 5 gallons Carrier Solution - For all chemicals BROCHURE MANUAL50 lbs.
VK2-1G 1 gallon Carrier Solution - For all chemicals BROCHURE MANUAL9 lbs.
PFC-1G 1 gallon Cleaning Solution - MANUAL9 lbs.
VK1-55G 55 gallons Carrier Solution - For EC chemicals BROCHURE MANUAL 600 lbs.
VK2-55G 55 gallons Carrier Solution - For all chemicals BROCHURE MANUAL 535 lbs.



All PulsFOG units come with a cleaning kit, a cleaning brush, a chemical funnel, ear protection and a sample of PFC cleaning solution.

PulsFOG is a registered trademark of Dr. Stahl & Sohn GmbH & Co. KG
