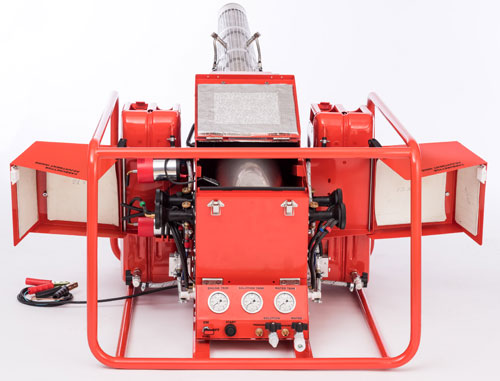

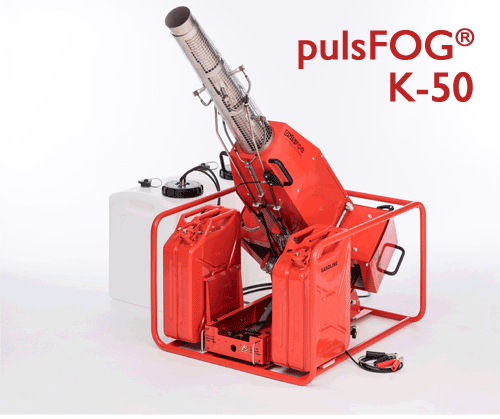

PulsFOG® K-50

Fog Faster!



The New K-50 offers more power for quicker applications and further coverage distances. With four carburetors producing 175 HP, the K-50 has a maximum output of 250 liters/hour and a maximum distance of throw of 300'.

Like other PulsFOG units, the K-50 has a throttle at each carburetor to control fuel flow into the combustion chamber. However, this new unit includes a master throttle and master valve that allows for trimming the engine and shutting it off without having to adjust the four individual valves.

A push-button-start pumps air into the carburetors to engage the K-50, making operation easy.

The unit is easy to stop and start, and is able to restart immediately after shutdown, due to some advanced features.

A hand-lever engages a pneumatic cylinder that allows for positioning of the barrel height easily and quickly without turnbuckles or other devices.

The K-50 operates as a BIO machine with one tank for solution and another for plain water to cool the exhaust. This allows for the application of heat-senstitive and biological products to be fogged without damage.

Currently, the K-50 includes two 55 liter tanks. Tank options will expand in the future to increase fogging capacity.

The K-50 uses two separate, 20 liter fuel tanks for a long run time. Each can be shut off and removed individually for easy filling while the other continues to fuel the PulsFOG.

Shut off the fuel to one tank with a hand valve, release the quick-connected fuel lines and pull the simple fuel release lever (shown right) to remove a tank from the unit for fueling.

The K-50 comes with a cleaning kit, a barrel brush and required ear protection.


K-10 Portable PulsFOG®


For greenhouses. Fogs 10 liters in 45 minutes. Propels fog up to 65 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-10 25 HP/10 Liter K-10 Portable PulsFOG® BROCHURE MANUAL25 lbs.

K-10/O Portable Livestock PulsFOG®


For livestock or outdoor. For use with oil-based formulations. Fogs 10 liters in 45 minutes.

Propels fog up to 65 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-10/O 25 HP/10 Liter K-10/O Portable Livestock PulsFOG® BROCHURE MANUAL18 lbs.

K-22 Standard PulsFOG®


For greenhouses. Fogs 10 liters in 30 minutes. Propels fog up to 120 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-22 50 HP/10 Liter K-22 Standard PulsFOG® BROCHURE MANUAL18 lbs.

K-22/O Portable Livestock PulsFOG®


For livestock or outdoor use. For use with oil-based formulations. Fogs 10 liters in 30 minutes.

Propels fog up to 120 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-22/O 50 HP/10 Liter K-22/O Portable Livestock PulsFOG® BROCHURE MANUAL33 lbs.

K-22 BIO Portable PulsFOG®


For greenhouses or livestock. Safe for heat sensitive products. Fogs 5 liters in 15 minutes. Propels fog up to 120 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-22 BIO 50 HP/2-5 Liter K-22 BIO Portable PulsFOG® BROCHURE MANUAL34 lbs.

K-30 Standard PulsFOG®


For greenhouses. Fogs 10 liters in 15 minutes.

Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30 100 HP/10 Liter K-30 Standard PulsFOG® BROCHURE MANUAL25 lbs.

K-30/O Portable Livestock PulsFOG®


For livestock or outdoor use. For use with oil-based formulations. Fogs 10 liters in 15 minutes. Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/O 100 HP/10 liter K-30/O Portable Livestock PulsFOG® BROCHURE MANUAL42 lbs.

K-30 Large BIO PulsFOG®


For greenhouses or livestock. Safe for heat sensitive products. Fogs 55 lites in 80 minutes. Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/20 BIO 100 HP/2- 55 liter tanks K-30 Large BIO PulsFOG® BROCHURE MANUAL67 lbs.

K-30 Large Livestock PulsFOG®


For livestock or outdoor use. For use with oil-based formulations. Fogs 55 liters in 80 minutes. Propels fog up to 220 feet.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/20/O 100 HP/55 liter K-30 Large Livestock PulsFOG® BROCHURE MANUAL58 lbs.

K-40 Large BIO PulsFOG®


For greenhouses or livestock. Safe for heat sensitive products. Fogs 50 liters in 50 minutes. Propels fog up to 300 feet. 100 Liter tanks available.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-40 PulsFOG 125 HP/2- 55 liter tanks K-40 Large BIO PulsFOG® BROCHURE MANUAL-

K-50 Large Bio PulsFOG®


For greenhouses or livestock. Safe for heat sensitive products. Fogs 50 liters in 30 minutes. Propels fog up to 350 feet. Larger tanks available.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-50 PulsFOG 175 HP/2- 55 Liter tanks K-50 Large Bio PulsFOG® BROCHURE MANUAL-

K-30/20 Cart


For K-30/20 PulsFOG machines. Can handle two 55 liter tanks. Allows for height adjustment and includes handle to turn PulsFOG.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/20C - K-30/20 Cart BROCHURE MANUAL85 lbs.

K-30/20 Big-Foot Cart


Same as K-30/20C but with Big-Foot pneumatic tires and casters.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-30/20C-BF - K-30/20 Big-Foot Cart - -90 lbs.

PulsFOG Accessories


ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
Accessories - PulsFOG Accessories - --

5 Liter Chemical Tank



For PulsFOG K-10SP

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
K-05LCT 5 liter 5 Liter Chemical Tank - MANUAL2 lbs.
K-10LCT 10 liter 10 Liter Chemical Tank - MANUAL3 lbs.
K-55LNR 55 liter 55 Liter Chemical Tank - MANUAL11 lbs.
K-CF - Chemical Funnel - MANUAL1 lbs.
K-GP - Gas Pitcher - MANUAL1 lbs.
K-EP - Ear Protectors - MANUAL1 lbs.
K-CHP - Cleaning Hand Pump - MANUAL1 lbs.
K-CST - Cleaning Solution Tank - MANUAL2 lbs.
149 - PulsFOG Dosage Nozzles - MANUAL1 lbs.

Carrier Solution


Use of the PulsFOG requires a carrier solution to help reduce surface tension and create evenly sized droplets. There are three solutions available. For most horticultural applications, NutriFOG is the preferred carrier. VK-I and VK-II are also available. NutriFog and VK-II are for all chemical formulations and mixed with water. VK-I is for EC chemicals only and is NOT to be mixed with water.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
Carrier Various Carrier Solution - --

NutriFog - For all chemicals



NutriFOG is a 10-3-3 foliar fertilizer. It can be used with all chemical formulations. It is safe on all ornamentals. 0.25 liters mixed with 1.75 liters of water will treat 10,000 square feet. Do not use more than 5 times in one month on the same crop. Available in 20 liter (5 gallon) containers. NutriFOG Instructions NutriFOG Brochure

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
NF-20 20 liters NutriFog - For all chemicals BROCHURE MANUAL58 lbs.
VK1-5G 5 gallons Carrier Solution - For EC Chemicals BROCHURE MANUAL56 lbs.
VK2-5G 5 gallons Carrier Solution - For all chemicals BROCHURE MANUAL50 lbs.
VK2-1G 1 gallon Carrier Solution - For all chemicals BROCHURE MANUAL9 lbs.
PFC-1G 1 gallon Cleaning Solution BROCHURE MANUAL9 lbs.
VK1-55G 55 gallons Carrier Solution - For EC chemicals BROCHURE MANUAL 600 lbs.
VK2-55G 55 gallons Carrier Solution - For all chemicals BROCHURE MANUAL 535 lbs.



All PulsFOG units come with a cleaning kit, a cleaning brush, a chemical funnel, ear protection and a sample of PFC cleaning solution.

PulsFOG is a registered trademark of Dr. Stahl & Sohn GmbH & Co. KG
