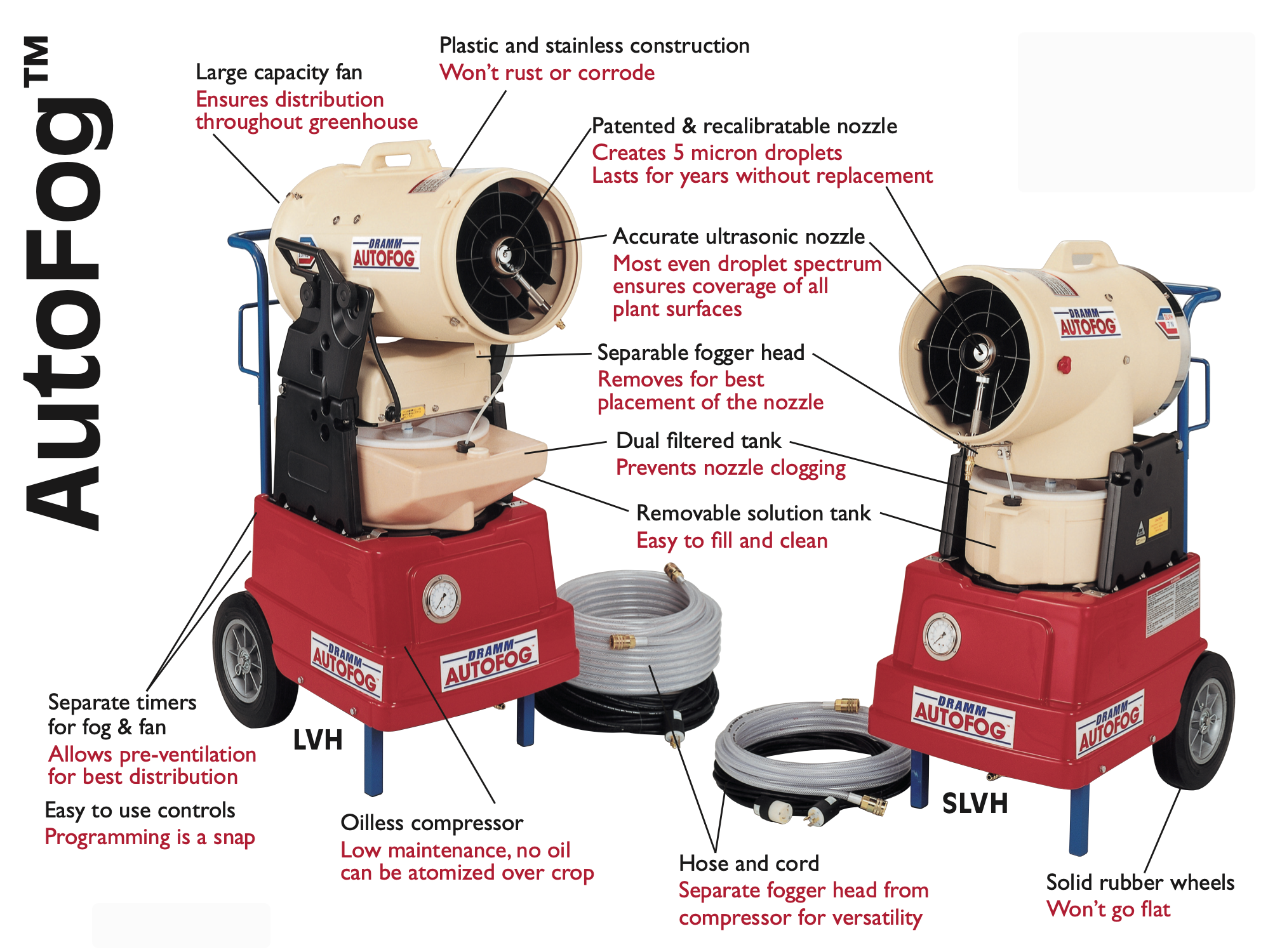

Autofog Automatic Chemical Application

The Dramm Autofog automatically sprays areas up to 70,000 square feet with no applicator present. The ultra-fine cloud of droplets penetrates deep into the plant canopy covering all surfaces, ensuring excellent control of greenhouse pests and diseases.



The Autofog saves time and money by eliminating the labor needed to spray while reducing the amount of chemical needed to control your pests. By creating billions of tiny spray droplets, the Autofog treats large areas with less chemical solution.

Just set the timer, mix the chemical and leave. The Autofog does the rest. The next morning, ventilate the greenhouse, clean up the Autofog.



Each Autofog can spray greenhouses up to a certain size by themselves. For larger areas, the Autofog works with the AME Horizontal Air Flow Fans to evenly distribute the chemical solution.

The Autofog is available as a complete unit or may be mounted in the greenhouse.

For more information, download the Autofog brochure or contact us via e-mail or by phone at the numbers listed to the left.

For corrosive chemicals, a stainless-steel option is available to prevent damage to the nozzle.

Videos detailing training, cleaning and maintenance are available at the link below.

Manuals are available in the table below by product.




Technical Questions? Check out our forum.

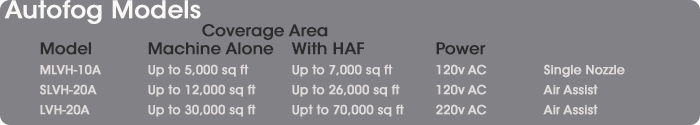

Mini AutoFog™


Treats up to 5,000 sq ft alone or up to 7,000 sq ft with HAF fans. Perfect for individual greenhouses, quonset huts and smaller areas. More than one can be used together for larger areas and separated for smaller areas.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
MLVH-10A 120 volt Mini AutoFog™ BROCHURE MANUAL83 lbs

Autofog™


Treats 12,000 square feet . Treats 26,000 square feet with additional fans . Fogger head separates from control & compressor carriage for portable use

.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
SLVH-20A 120 volt Autofog™ BROCHURE MANUAL156 lbs

Large AutoFog™


Treats 30,000 square feet. Treats 70,000 square feet with additional fans . Fogger head separates from control & compressor carriage for portable use. 240 Volts 60HZ, single phase

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
LVH-20A 220 volt Large AutoFog™ BROCHURE MANUAL187 lbs

Dual Head Autofog™


Treats 60,000 sq ft alone or up to 140,000 with HAF fans. Uses two LVH fogger heads with one compressor and control section.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
DLVH-20A 220 volt Dual Head Autofog™ BROCHURE -300 lbs

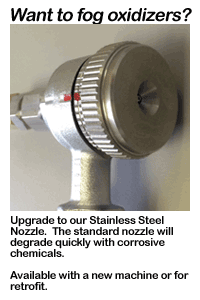

Stainless Steel Nozzle for MLVH and SLVH Autofog


For the application of corrosive chemicals with the Autofog. Replaces the standard brass nozzle. Available for all Autofog sizes.

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
J753A2 45 ml/min Stainless Steel Nozzle for MLVH and SLVH Autofog - -1.2 lbs

Stainless Steel Nozzle for LVH and DLVH Autofog



ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
J754B2 55 ml/min Stainless Steel Nozzle for LVH and DLVH Autofog - -1.2 lbs

Autofog Annual Maintenance Kit



The Autofog Annual Maintenance Kit includes a collection of components that should be replaced on the Autofog units annually. The kit includes O-Rings and a replacement solution line for the nozzle, an air filter for the compressor and easy to use instructions on how to replace each part as well as calibrate your Autofog nozzle for the next season. Please specify the model when ordering. (ML, SL or LV)

ITEM SIZE NAME BROCHURE MANUAL SHIP WT.
AF-AMK- _ _ Specifiy Unit Size Autofog Annual Maintenance Kit - MANUAL0.8 lbs
